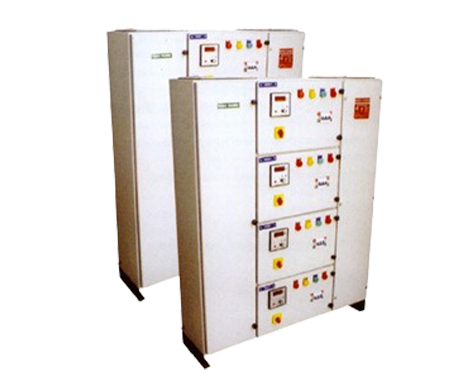

Heater Control Panel

Control Panels for Heater

Heater control panel maintains the performance of the heaters. Control Panel is actually a a control box attached to the Heaters that controls the whole mechanism and maintains stability & performance of the heater. A standard control panel is ideal for heaters with a maximum watt density of 30 to 200 ampere.
Key Features
  • Standard sizes: 1.25” NPT Screw Plug size to 14” diameter
  • Steel or stainless vessels fitted with 150 lb./300 lbs/ 600lbs/ 2000 lbs. psi flanges
  • Thermal insulated vessels
  • Custom unit sizes
  • Custom-designed to meet your specifications
  • Special sizes, wattages, and materials are available upon request
  • Units are available with larger vessels and heavier flanges
  • Insulated upon request
Enquiry
Frequently Asked Questions

A heater control panel is a dedicated control box attached to industrial heaters that manages, monitors, and stabilizes the performance of the heater. Its main function is to regulate power, maintain temperature stability, and ensure safe, efficient operation of the heating system.

Typical components include PID/ON-OFF temperature controllers, solid state relays (SSR), thyristor modules, MCBs, fuses, contactors, indicators, and cooling fans to ensure efficiency, safety, and stability.
Standard heater control panels are suitable for a wide range of industrial heaters with watt densities from 30 to 200 amperes, making them ideal for applications in process heating, tanks, baths, and other large-scale heating systems.
Many modern heater control panels offer automated remote-control features, allowing operators to monitor and adjust heater performance from a centralized location. This enables efficient management and quick response to temperature changes or alarms.
Heater control panels provide precise temperature regulation, improve energy efficiency, enhance safety, and allow for centralized or remote management of heating systems. They help prevent overheating, reduce downtime, and support consistent product quality.
These panels are compatible with a wide range of heaters including band heaters, tubular heaters, cartridge heaters, infrared heaters, immersion heaters, and hot runner systems, commonly used in plastics and process industries.
