Manifold Heaters
Manifold Heaters

Manifold Heaters

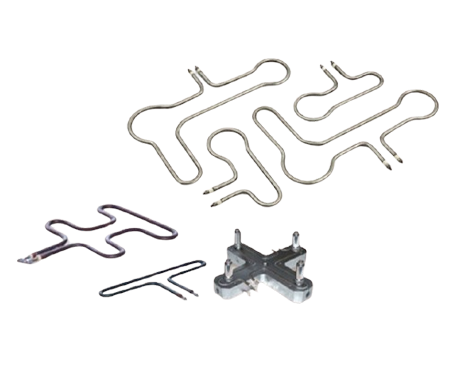

Elmec Manifold Heaters are available in Round & Square cross sections and various sizes and shapes as per customer’s spcifications.The outer sheath is made of Inconel.

Features
  1. Available in Following cross Sections: O 6.7mm, 8mm  6mm X 6mm, 8mm X 8mm
  2. Maximum Length – 2000mm
  3. Maximum surface Temperature 860oC
  4. Maximum Surface Load 8 watts / cm2
  5. Bend radius minimum – 14mm
Enquiry
Frequently Asked Questions

Elmec Manifold Heaters are available in both round and square cross-sections. Specifically, round options include Ø 6.7mm and Ø 8mm, while square options are 6mm x 6mm and 8mm x 8mm.

Yes, Elmec Manifold Heaters can be manufactured in various sizes and shapes according to customer specifications.
The outer sheath of Elmec Manifold Heaters is constructed from Inconel, a high-performance alloy known for its excellent resistance to high temperatures and corrosion.
Elmec Manifold Heaters can reach a maximum length of 2000mm, operate at a maximum surface temperature of 860°C, and handle a maximum surface load of 8 watts/cm².
The minimum bend radius for Elmec Manifold Heaters is 14mm.
Elmec Manifold Heaters are designed for various industrial heating applications, featuring robust Inconel outer sheaths and available in standard round and square cross-sections, with custom options for size and shape.
