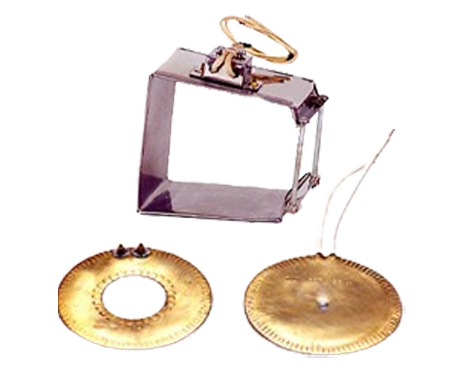

Mica Strip / Ceramic Frame Heaters

Mica Strip / Ceramic Frame Heaters

Elmec flat heaters & Heating Frames are available in any dimensions. They can be delivered in Mica or Ceramic insulation, depending on the temperature requirement. We built every technically possible heaters as per your requirement.

Applications
  • Plastic Processing machinery.
  • Injection and Blow Moulding.
  • Moulds and Dies.
  • Extruders.
Enquiry
MICA STRIP / CERAMIC FLAT & FRAME HEATERS FEATURES
Supplied in Mica as well as Ceramic insulation
Mica insulated type Max. charge: 25 watts/sq.inch
Max. operating temp: 250° C
Ceramic insulated type Max. charge: 40 watts/sq.inch
Max. operating temp: 360° C
Can be supplied to customer specifications and drawings
Frequently Asked Questions
Mica and ceramic frame heaters are flat electric heating elements designed for surface heating applications. They use either mica or ceramic insulation, chosen based on the required operating temperature

Mica ceramic frame heaters offer high temperature capabilities, excellent insulation properties, and resistance to thermal shock.

Mica ceramic frame heaters work by generating heat through an electrical current passing through a resistive element, which is then dispersed evenly through the mica frame.
To choose the right mica ceramic frame heater, consider factors such as the wattage, voltage, size, and mounting options that best suit your application requirements.
Industries such as plastics processing, Moulding, extrusion, and die heating frequently use these heaters for efficient and uniform surface heating.
Select mica insulation for applications up to 250°C and ceramic insulation for higher temperatures up to 360°C or higher watt densities.
